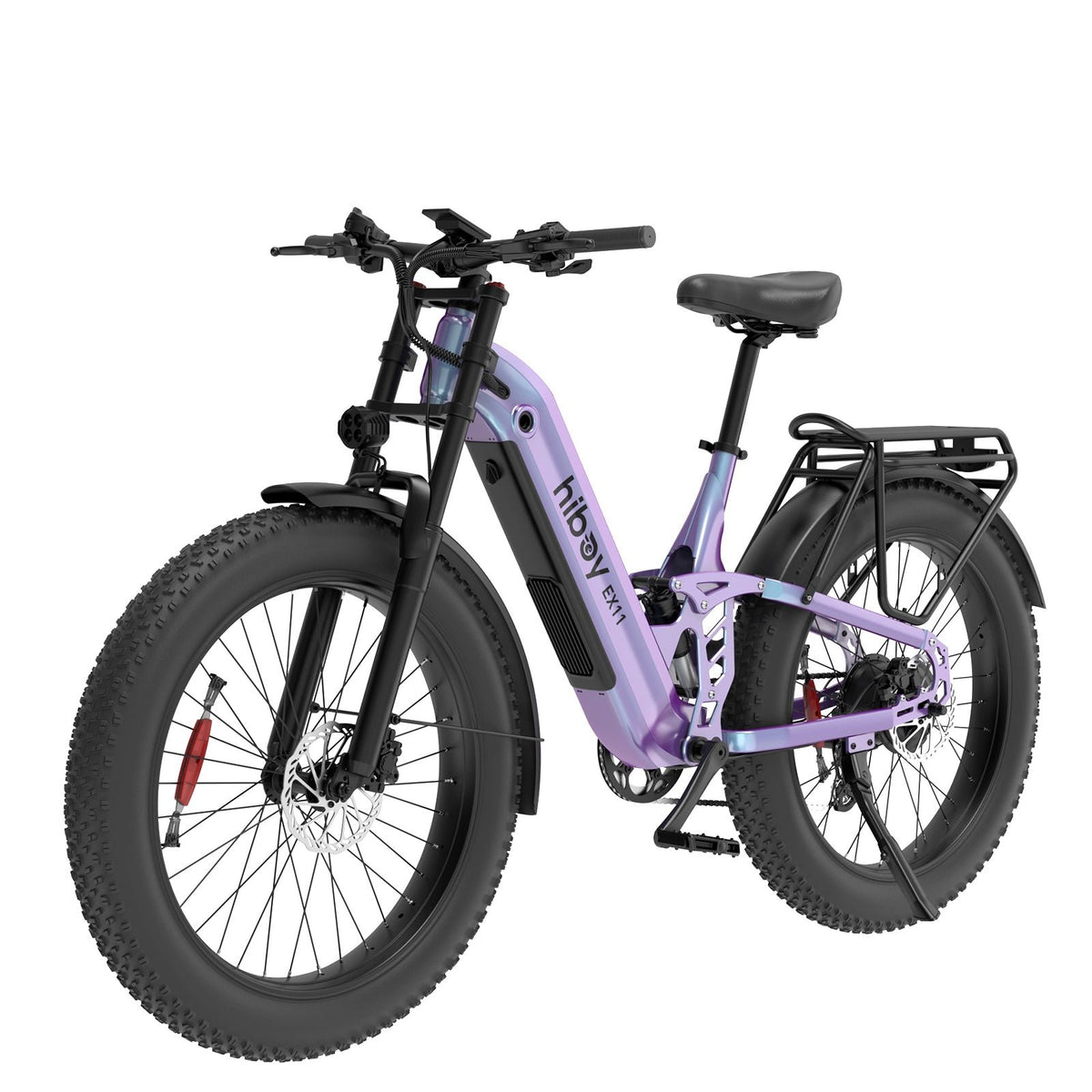

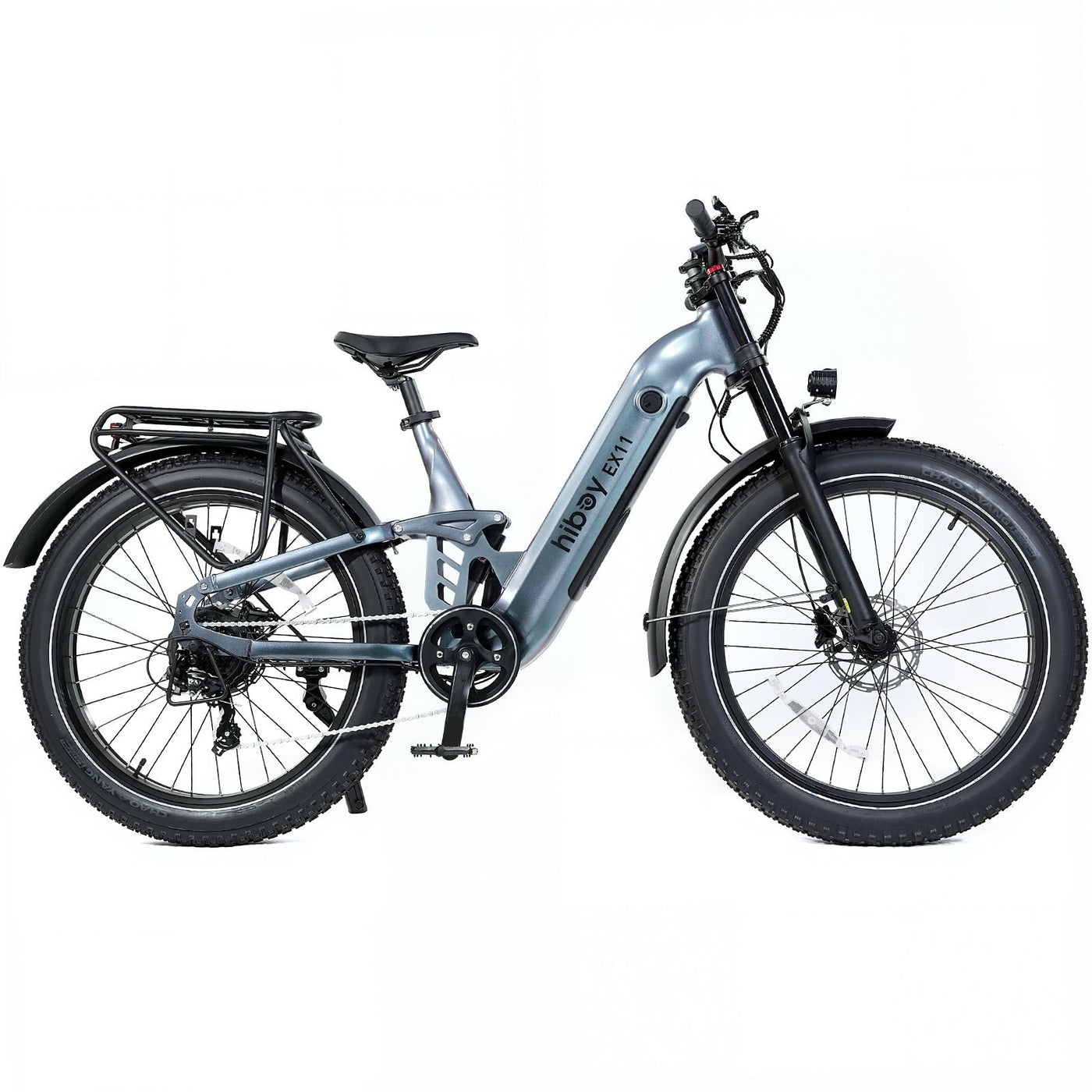

Hiboy EX11 Full Suspension Electric Bike

Hiboy EX11 Full Suspension Electric Bike - view 2

Hiboy EX11 Full Suspension Electric Bike - view 3

Hiboy EX11 Full Suspension Electric Bike - view 4

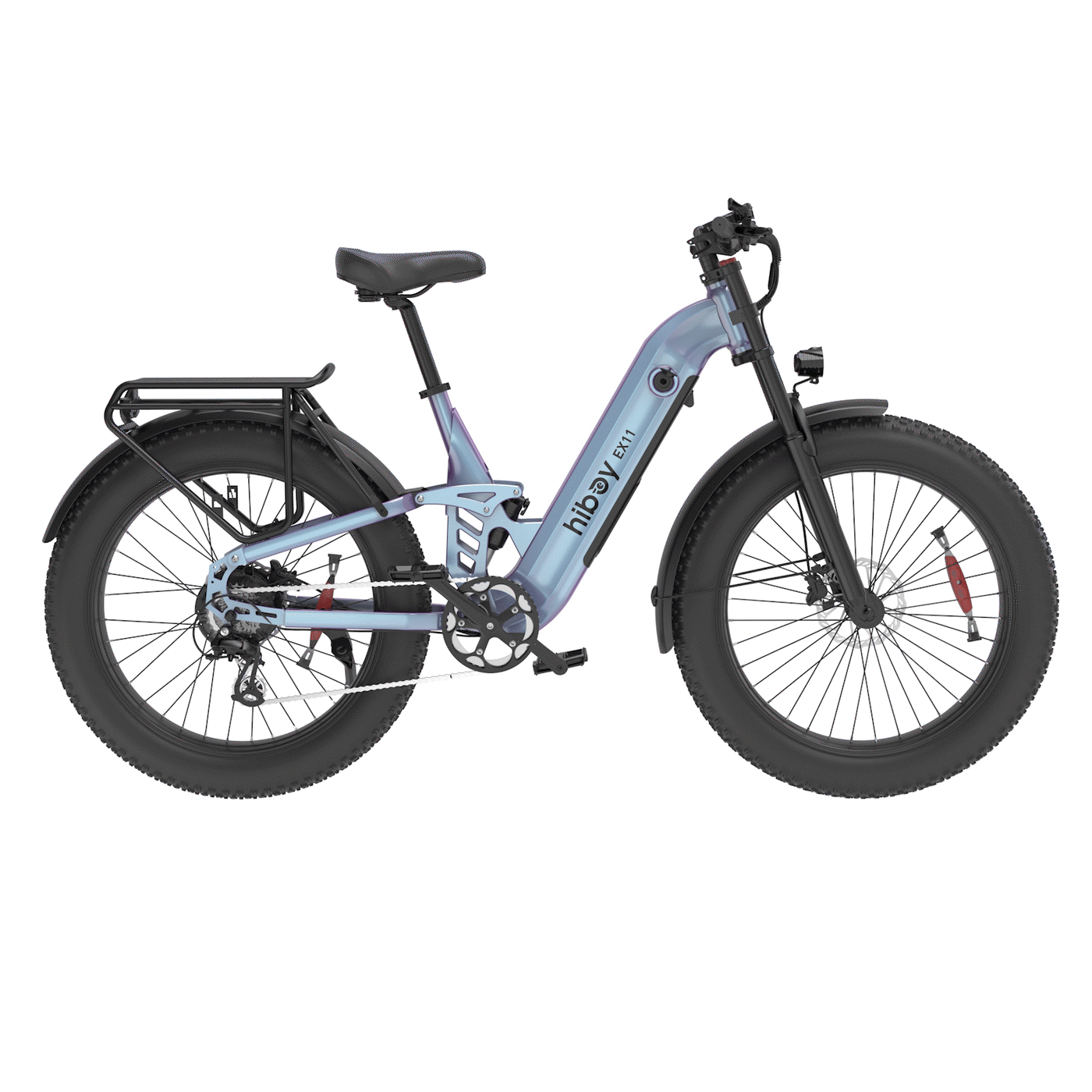

Hiboy EX11 Full Suspension Electric Bike - view 5

Hiboy EX11 Full Suspension Electric Bike - view 6

Hiboy EX11 Full Suspension Electric Bike - view 7

Hiboy EX11 Full Suspension Electric Bike - view 8

Hiboy EX11 Full Suspension Electric Bike - view 9

Hiboy EX11 Full Suspension Electric Bike - view 10

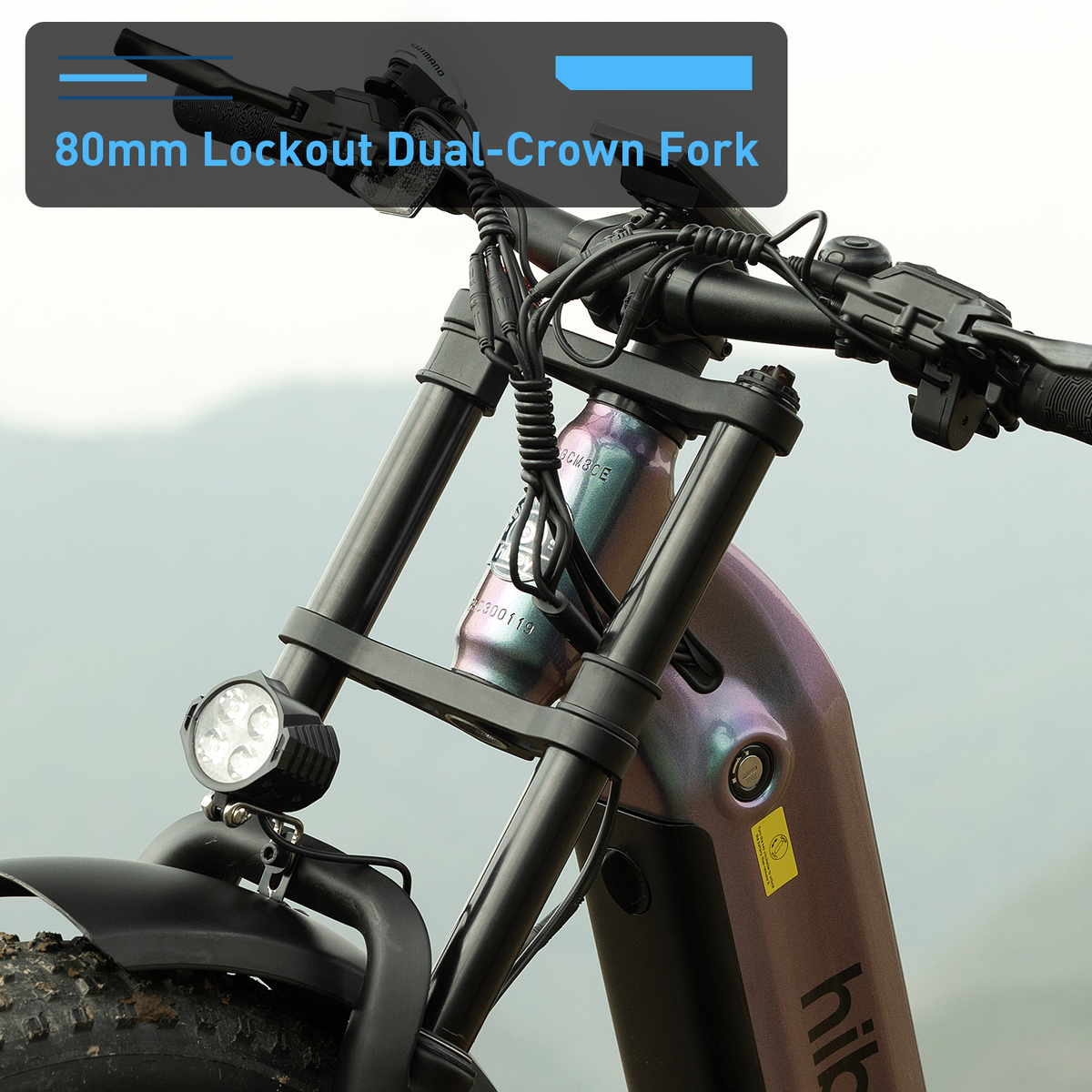

Hiboy EX11 Full Suspension Electric Bike - view 11

Hiboy EX11 Full Suspension Electric Bike - view 12

Hiboy EX11 Full Suspension Electric Bike - view 13

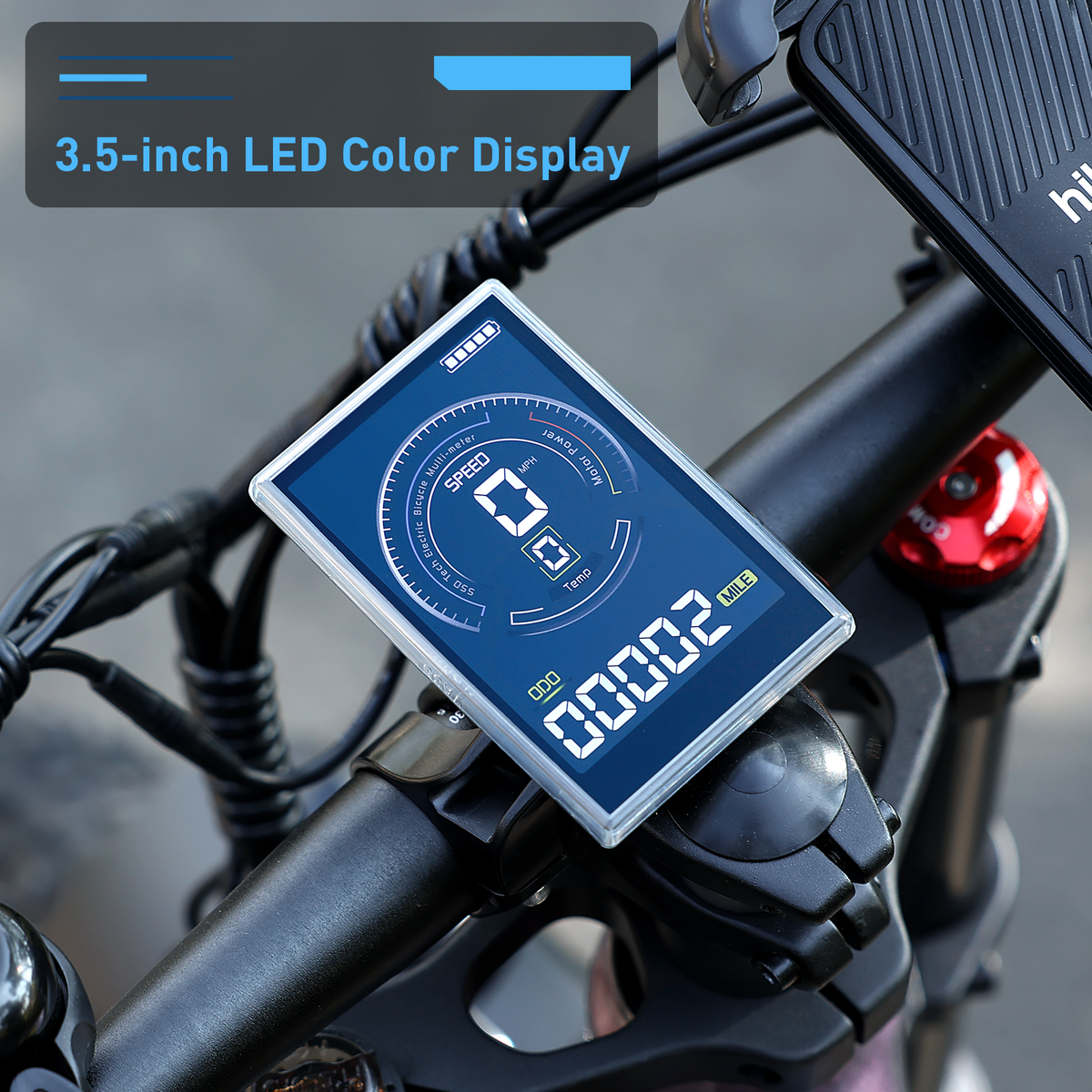

Hiboy EX11 Full Suspension Electric Bike - view 14

Hiboy EX11 Full Suspension Electric Bike - view 15

Hiboy EX11 Full Suspension Electric Bike - view 16

Hiboy EX11 Full Suspension Electric Bike - view 17

Hiboy EX11 Full Suspension Electric Bike - view 18

Hiboy EX11 Full Suspension Electric Bike - view 19

Hiboy EX11 Full Suspension Electric Bike - view 20

Hiboy EX11 Full Suspension Electric Bike - view 21

Hiboy EX11 Full Suspension Electric Bike - view 22

Hiboy EX11 Full Suspension Electric Bike - view 23

Hiboy EX11 Full Suspension Electric Bike - view 24

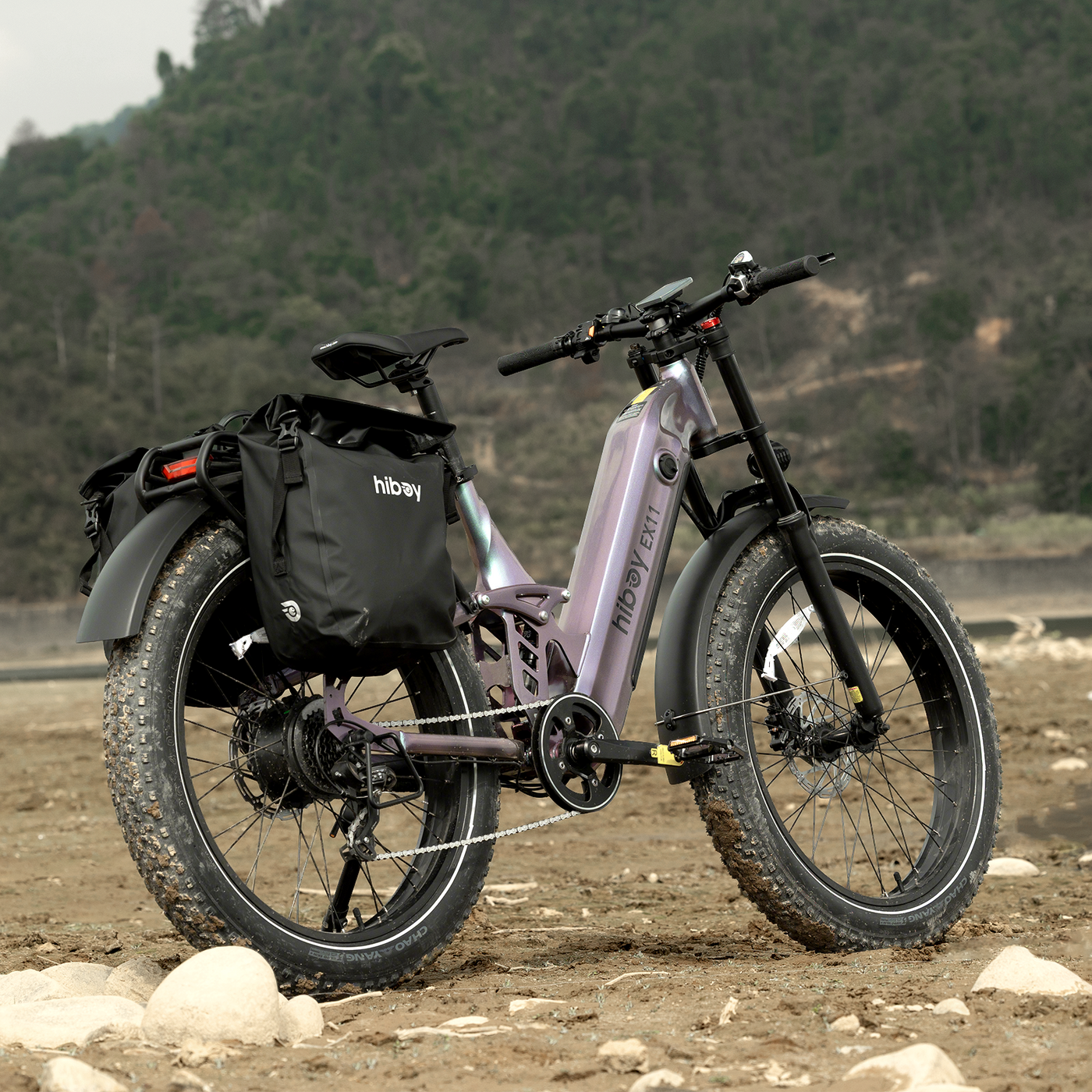

Hiboy EX11 Full Suspension Electric Bike - view 25

Hiboy EX11 Full Suspension Electric Bike - view 26

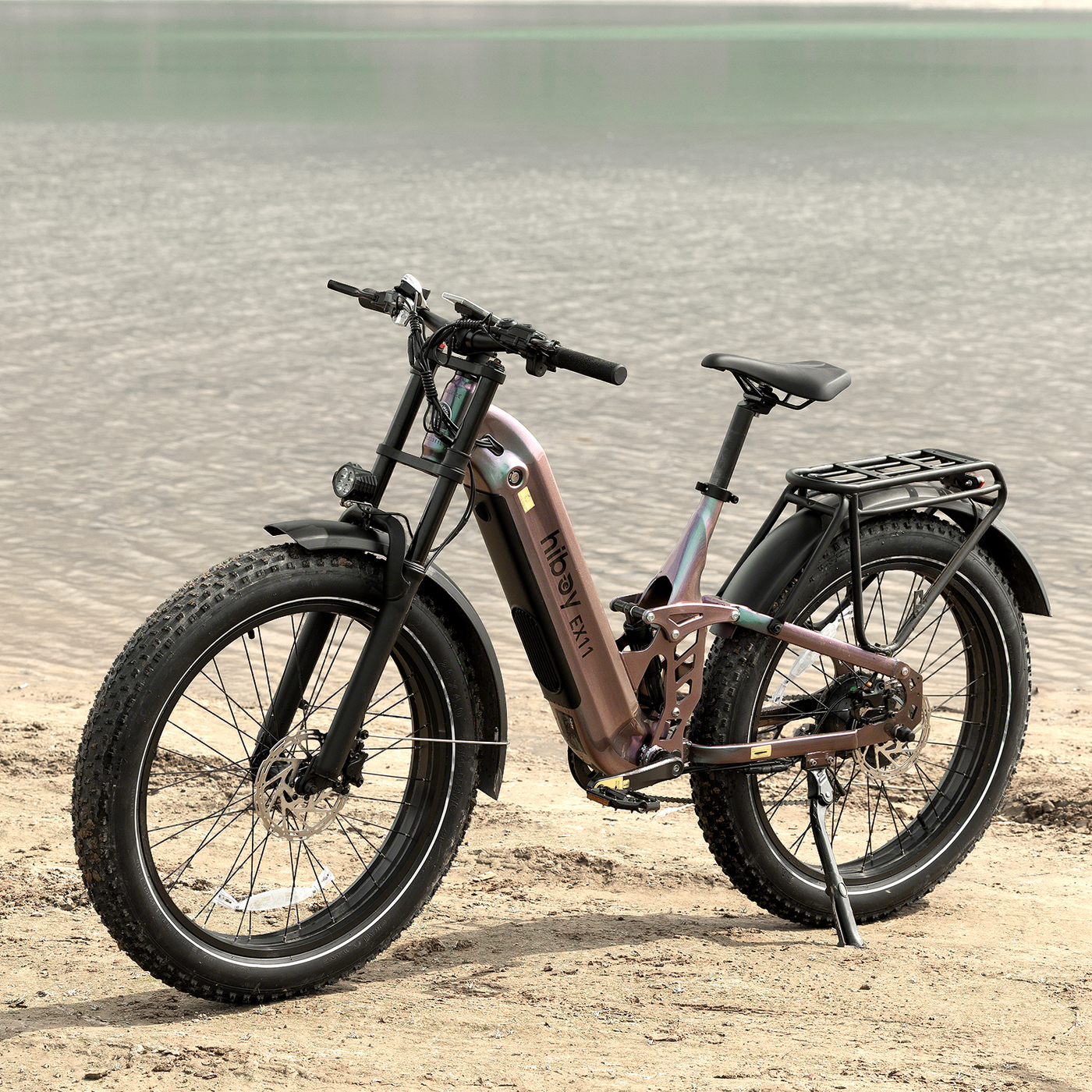

Hiboy EX11 Full Suspension Electric Bike - view 27

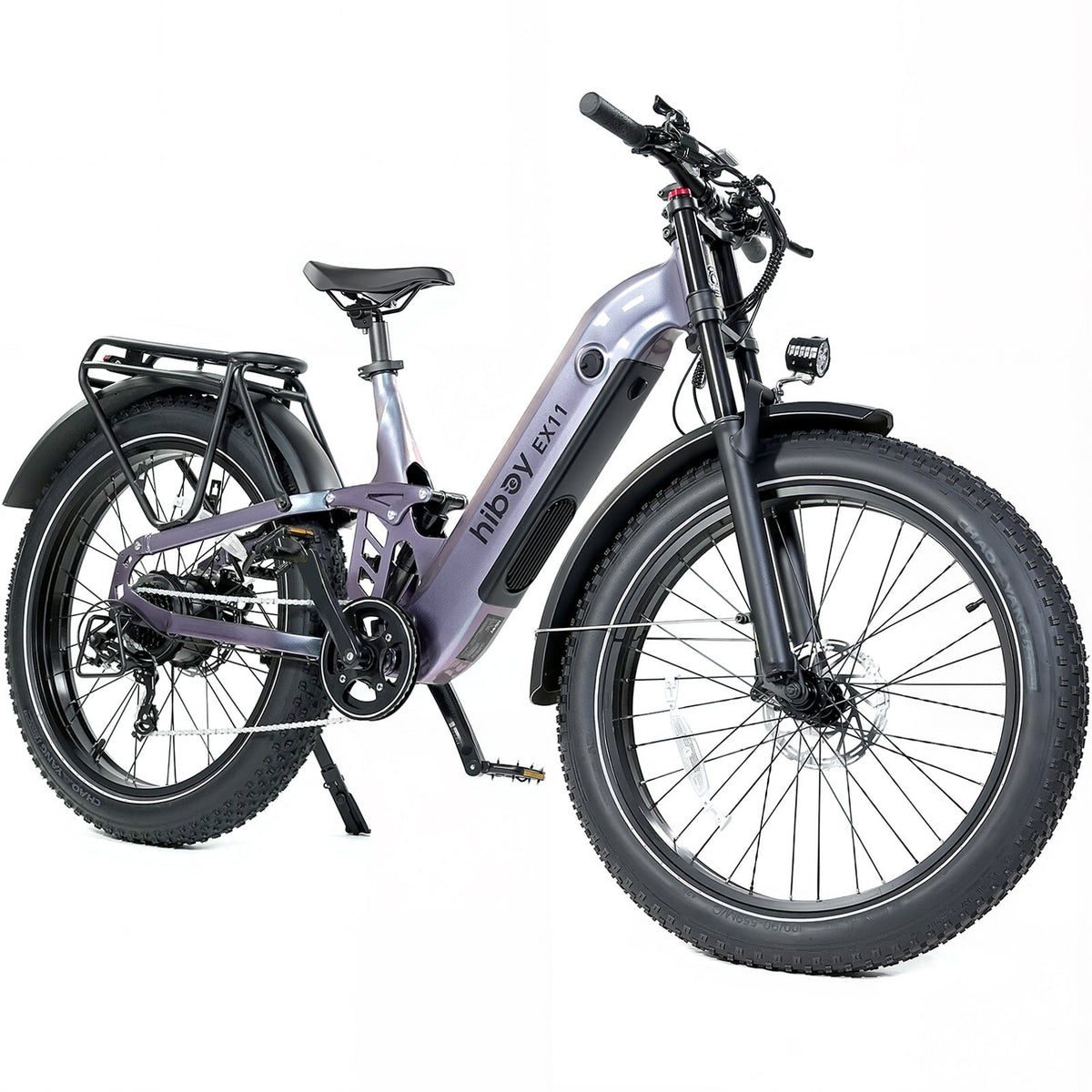

Hiboy EX11 Full Suspension Electric Bike - view 28

Hiboy EX11 Full Suspension Electric Bike - view 29

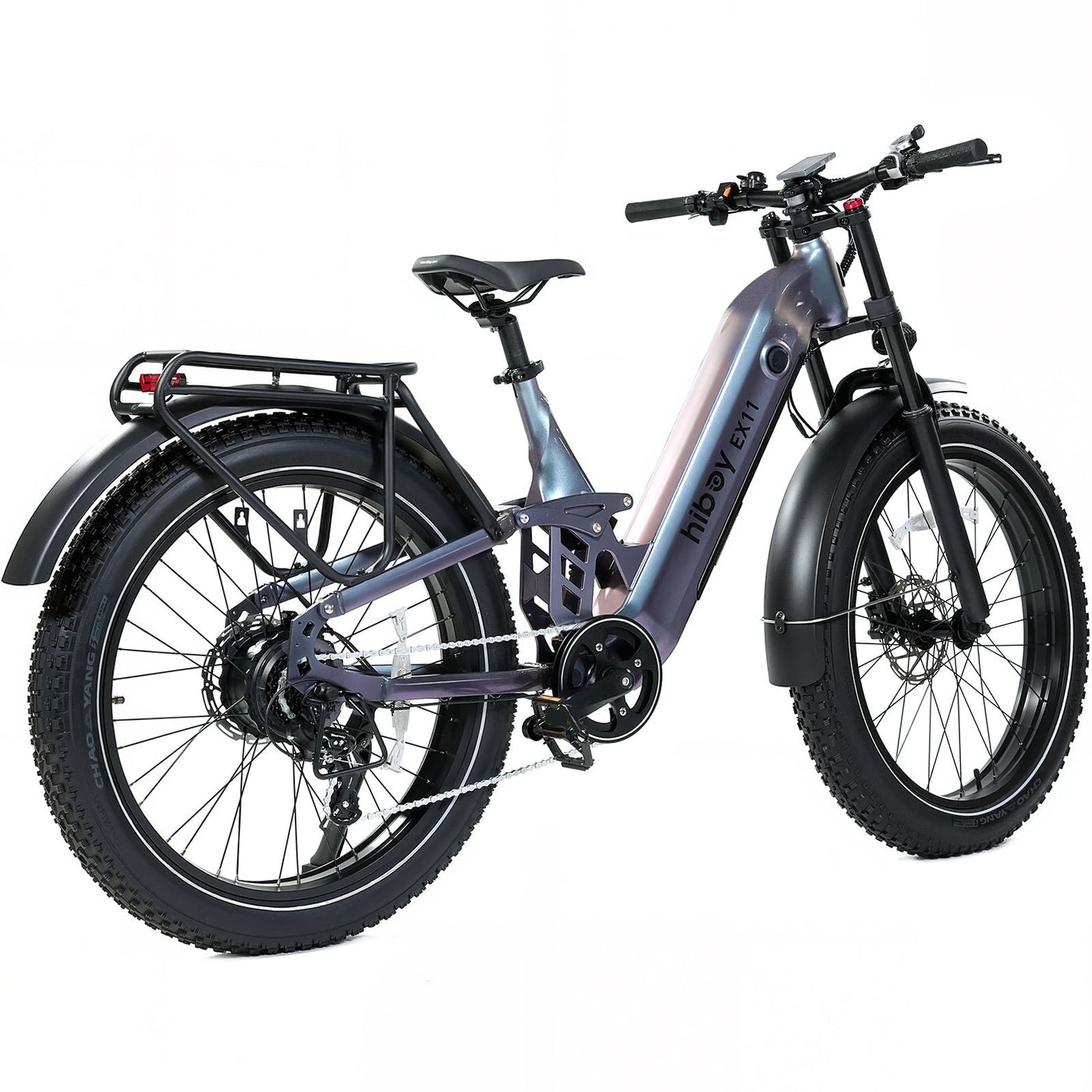

Hiboy EX11 Full Suspension Electric Bike - view 30

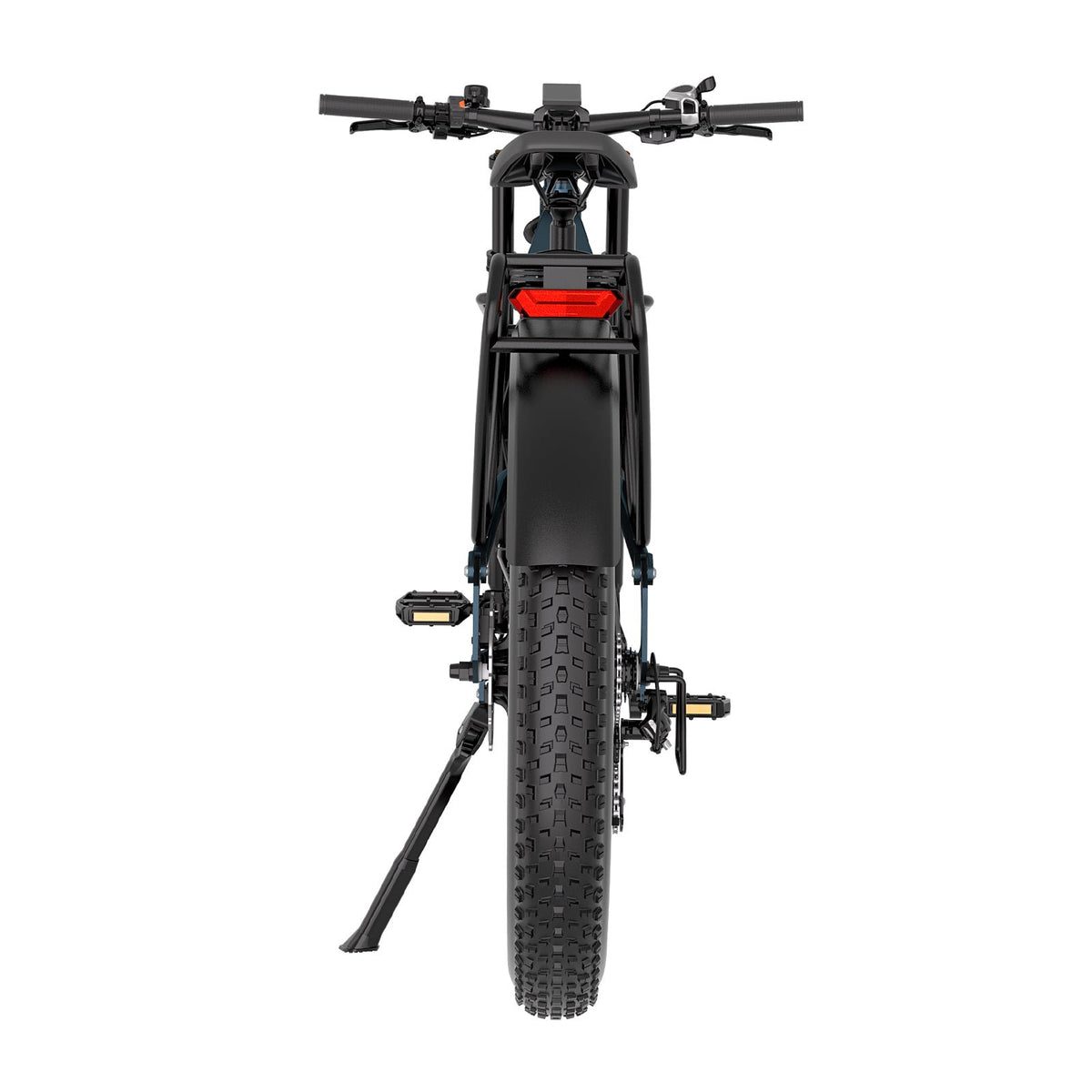

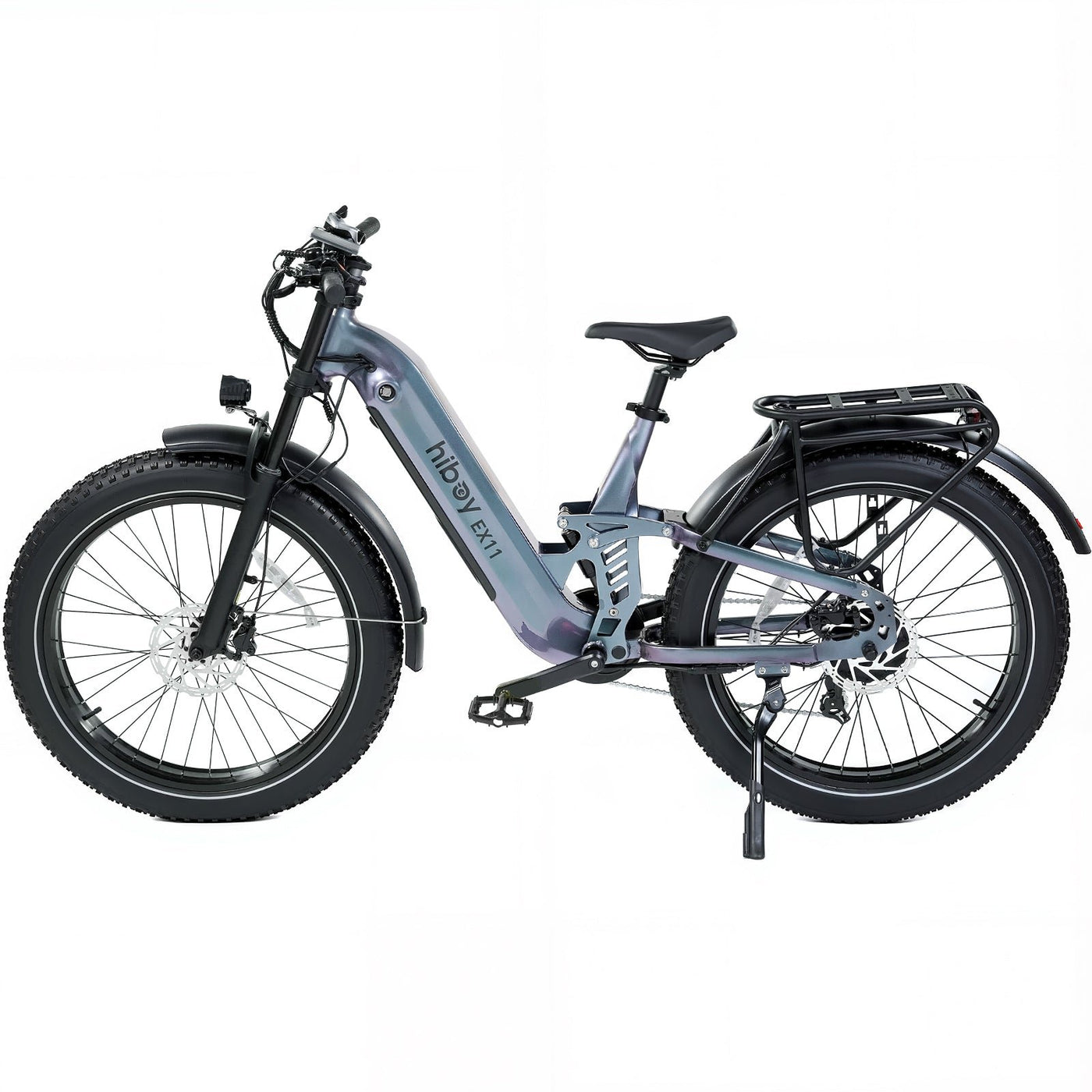

Hiboy EX11 Full Suspension Electric Bike - view 31

Hiboy EX11 Full Suspension Electric Bike - view 32

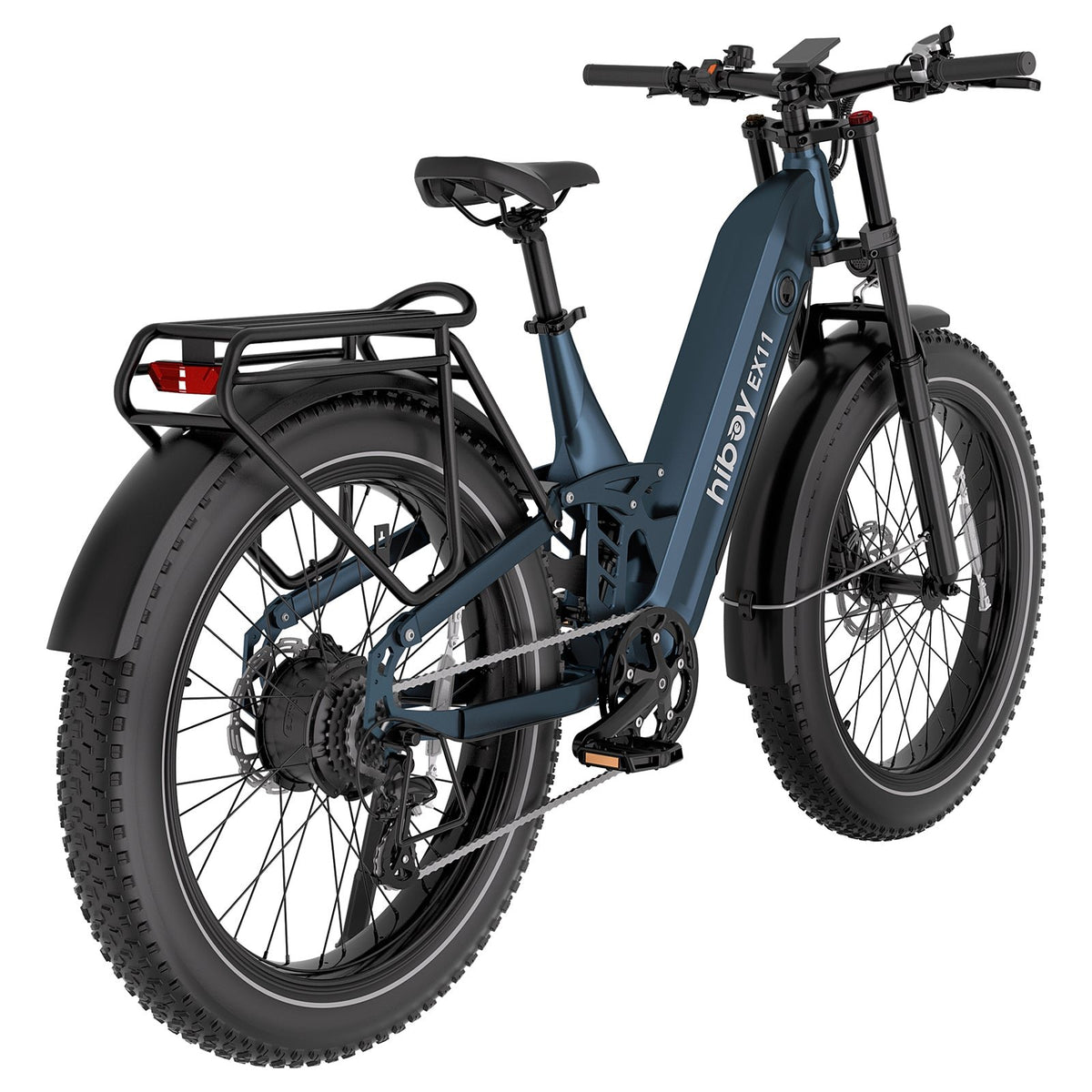

Hiboy · Electric Bikes

Hiboy EX11 Full Suspension Electric Bike

Name: Hiboy EX11 Full Suspension Electric Bike
Brand: Hiboy
SKU: WLS-HIBOY-EX11-CML
Price: 1299.99 USD
Availability: OutOfStock

20 mph (28 mph Class 3)Top speed

53 mi throttle, 100 mi assistMax range

750W ratedMotor

At a glance

The Hiboy EX11 full suspension electric bike is Hiboy’s flagship e-bike: an 864Wh battery good for up to 100 miles, a 750W torque-sensor motor with 90 Nm, 28 mph Class 3 assist and a 4-link rear suspension. Test ride the Hiboy EX11 at Wilson’s.

20 mph default, 28 mph Class 3, up to 100 miles pedal assist — removable 48V 18Ah battery, 53 miles on throttle.
750W motor, 880W peak, 90 Nm torque — torque sensor, 20% grade climbing, 300 lb payload.
Full suspension with dual-piston hydraulic brakes — 80 mm lockout fork, 4-link rear, 180 mm rotors, 26 x 4 inch fat tires.
3.5-inch color display — Shimano 1×7 drivetrain, IP65 battery and motor, 55 lb rear rack.

$1,299.99~~$1,999.99~~

Save $700

In stock at Wilson's

Free shipping, arrives in 3–7 days · or ready for pickup within 48 hours

Questions before you buy?Call (516) 300-0944 Email us

750W rated, 880W peak, 90 N-mMotor

48V 18Ah (864Wh) removableBattery

20 mph (28 mph Class 3)Top speed

53 mi throttle, 100 mi assistMax range

20% gradeMax incline

300 lbsMax load

Complete the ride

Goes with this one

Hiboy Adult Helmet$35.98~~$48.98~~

Hiboy Combination U-Lock$39.99~~$59.99~~

Hiboy Electric Bike Pannier Bag$49.98~~$89.99~~

Hiboy 3.2 ft Combination Cable Lock$29.99~~$49.99~~

The Wilson's promise

Store pickups are built, brake-checked and set up by our technicians before you collect. Shipped orders arrive boxed from the manufacturer.

Manufacturing defects are covered for a year. Wilson's manages the claim and does the work, so you never chase the brand.

Six repair shops in New York and California. Any brand, any issue, walk-ins welcome. Simple inspection is free; repairs are quoted from our price list.

Rider carrying the removable battery away from a Hiboy EX11 full suspension electric bike fitted with pannier bags

Hiboy EX11 overview

Full suspension, 100 miles, all day outdoors.

The Hiboy EX11 full suspension electric bike is built for long-distance outdoor rides. It leads with comfort and stability: a 26-inch 4-bar full-suspension frame paired with an 80 mm dual-crown fork with lockout smooths out potholes, gravel and trails for a calmer, less fatiguing ride, then locks out for efficiency on flatter roads. For range, a removable 48V 18Ah battery delivers up to 100 miles, so camping, fishing and hunting trips stop being about the charger.

Ships as a Class 2 e-bike at 20 mph; where local rules permit, Class 3 pedal assist to 28 mph can be enabled. We configure it for your state at handover. Wear a helmet and follow local rules.

100 miAssist range

90 NmTorque sensor

880WPeak motor

864 WhRemovable battery

Full4-link suspension

300 lbPayload

Rider in a helmet pausing on a navy Hiboy EX11 full suspension electric bike above a surf beach

Rider on a Hiboy EX11 electric bike with headlight on riding through a fern forest

Rider on a Hiboy EX11 electric bike splashing across a rocky mountain stream

Rider on a Hiboy EX11 electric bike on a narrow forest trail

Two Hiboy EX11 electric bikes with pannier bags parked on a lakeshore while two people fish

Suspension, range, torque

Ride smoother, go farther, climb easier

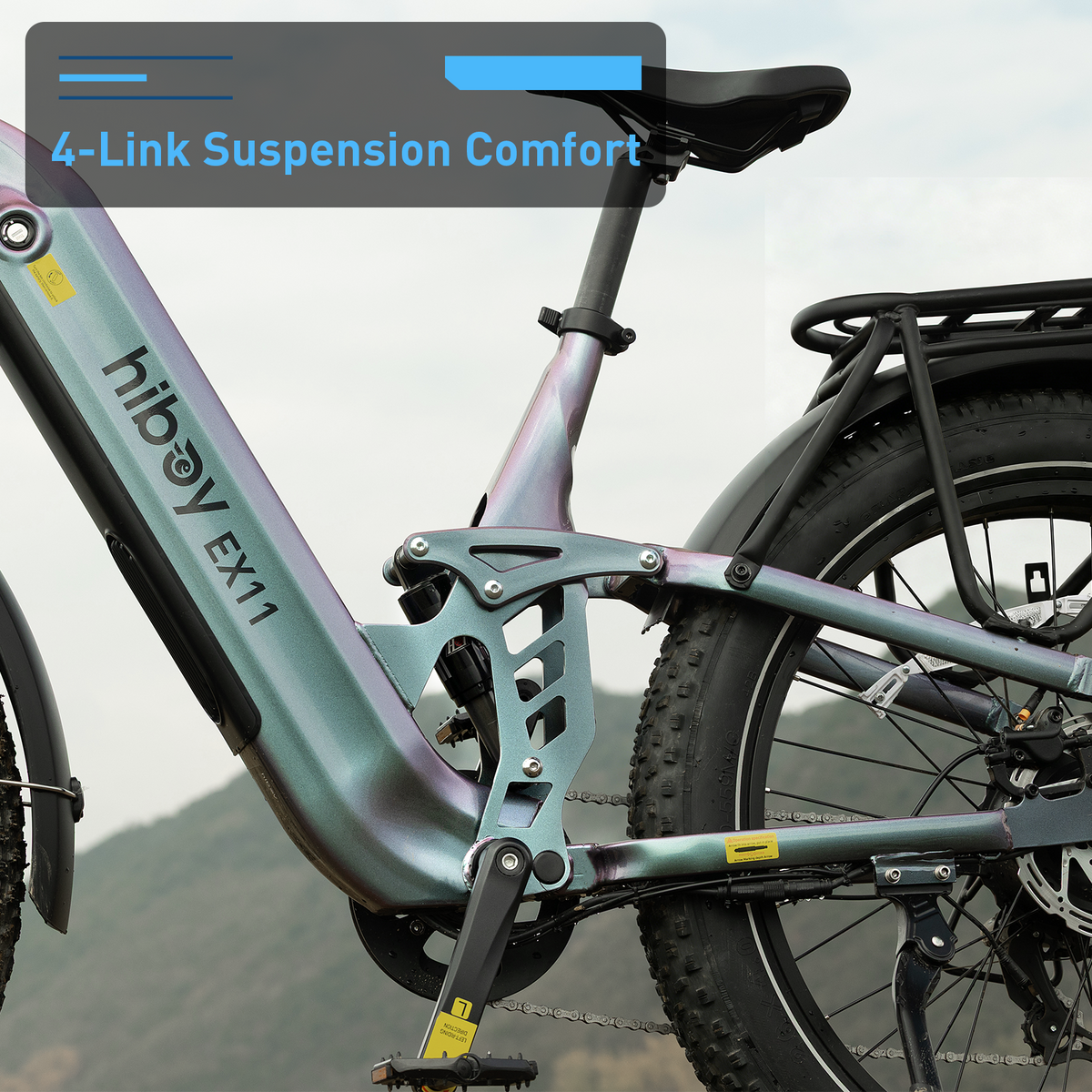

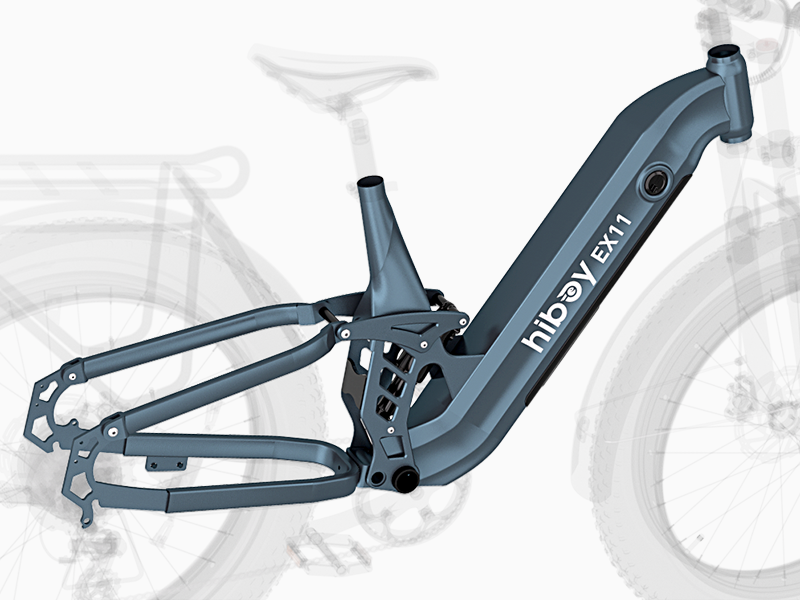

Render of the Hiboy EX11 frame showing the 4-link rear suspension linkage and shock

Ride smoother, stay stable

A 4-link rear suspension and an 80 mm dual-crown fork with lockout calm gravel, potholes and trails, and lock out for efficient pedaling on smooth roads.

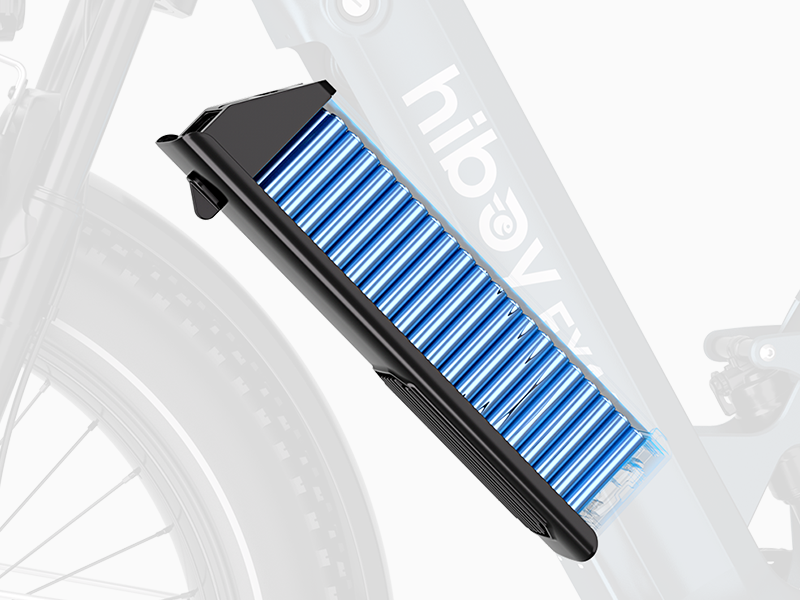

Render of the removable 48V 18Ah battery pack with cells visible on the Hiboy EX11 electric bike

Up to 100 miles for all-day outdoors

A removable 48V 18Ah (864 Wh) battery built for camping, fishing and hunting. Less range anxiety, more freedom, and it charges on or off the frame.

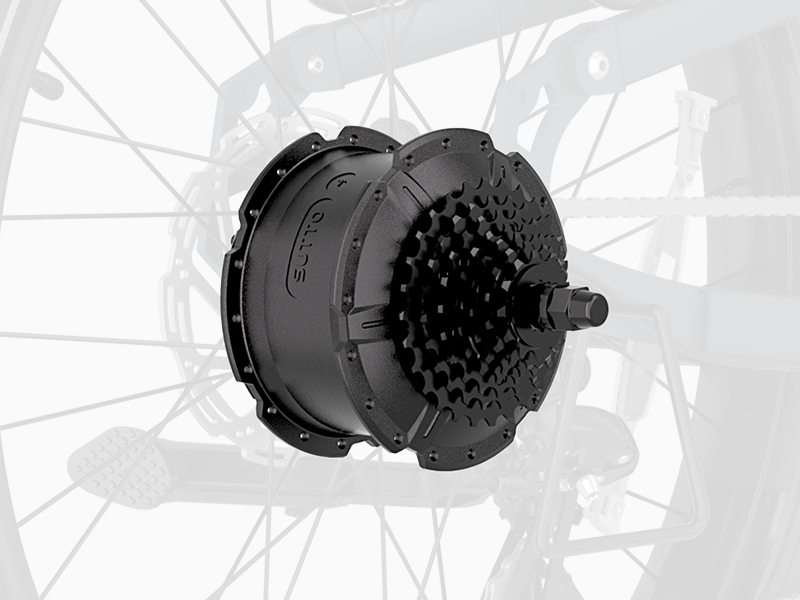

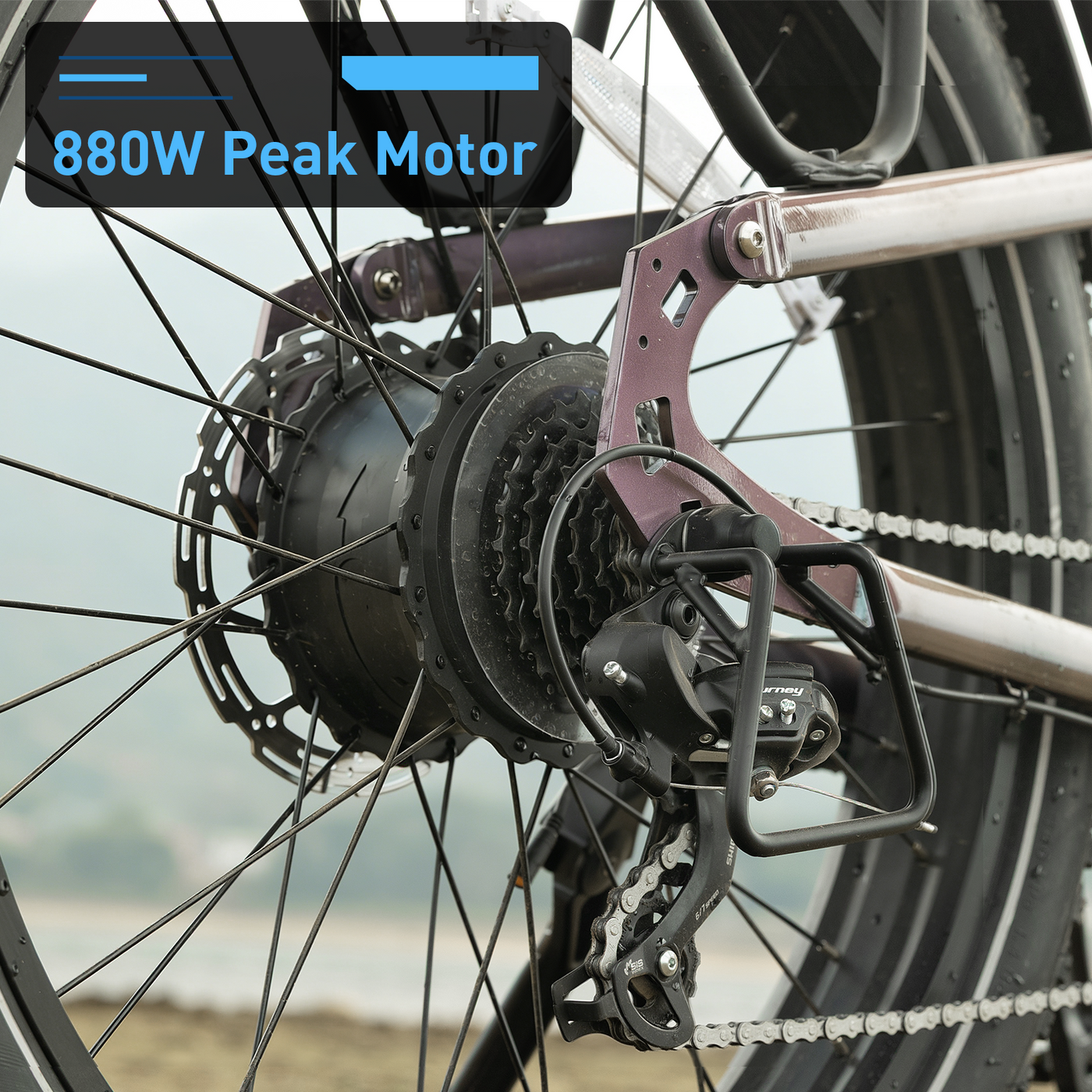

Render of the rear hub motor and 7-speed cassette on the Hiboy EX11 electric bike

Climb easier, feel in control

An 880W peak motor with 90 Nm of torque and a torque sensor: strong starts and easier climbs with smooth, predictable assist and no sudden surges.

More key features

Brakes, cargo, display, tires

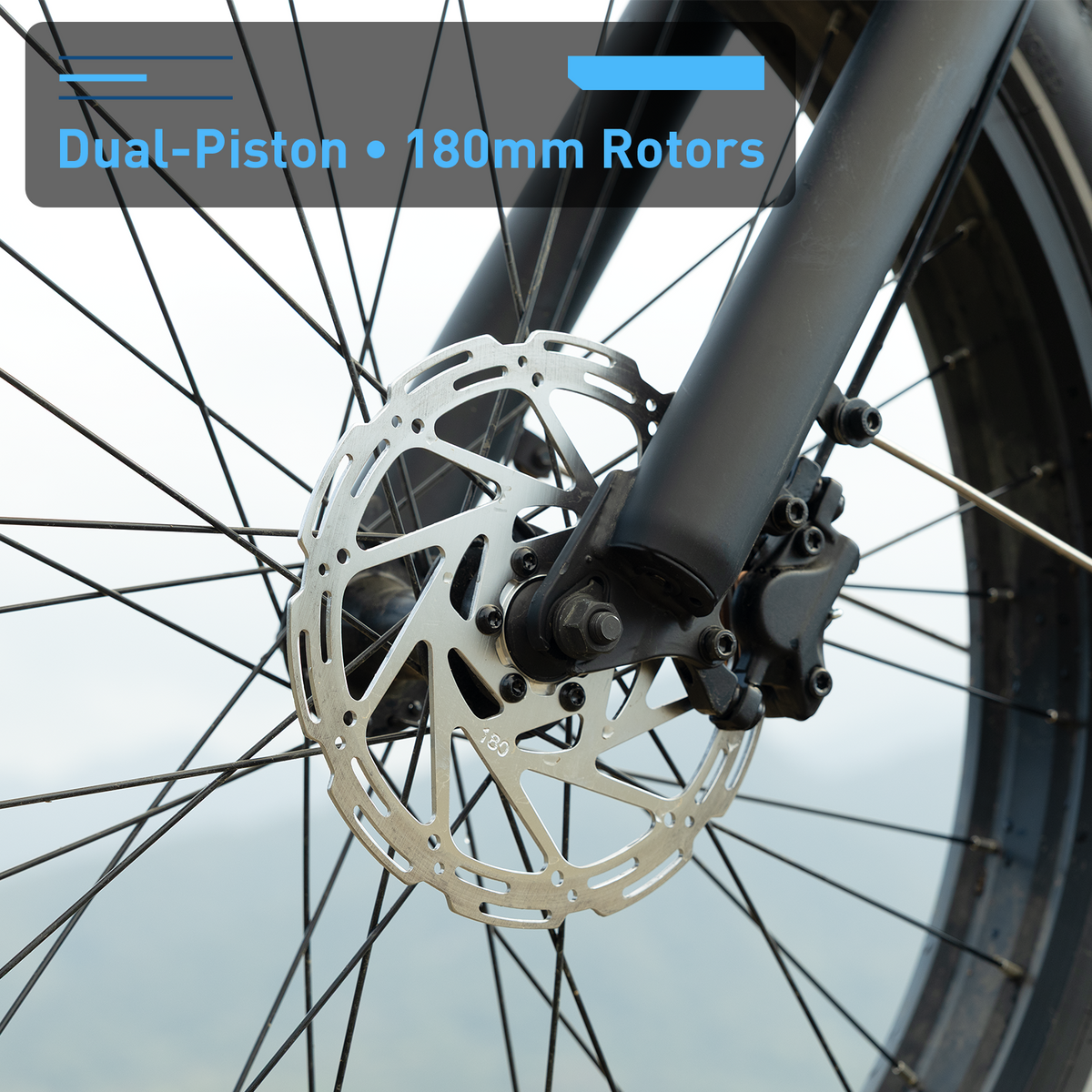

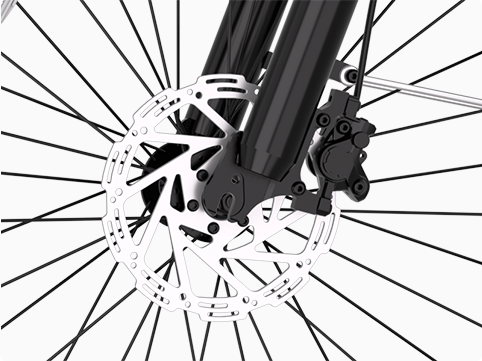

Render of the dual-piston hydraulic disc brake and 180 mm rotor on the Hiboy EX11 electric bike

Stop with confidence

Descents, loose gravel or riding home loaded with gear: dual-piston hydraulic brakes with 180 mm rotors keep braking smooth and consistent.

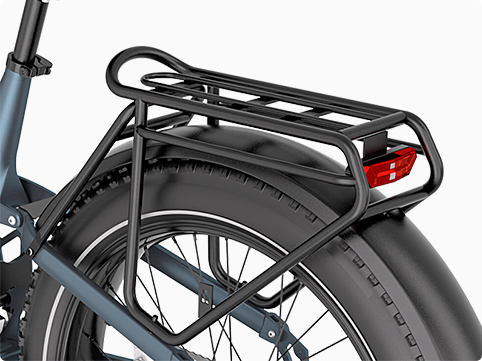

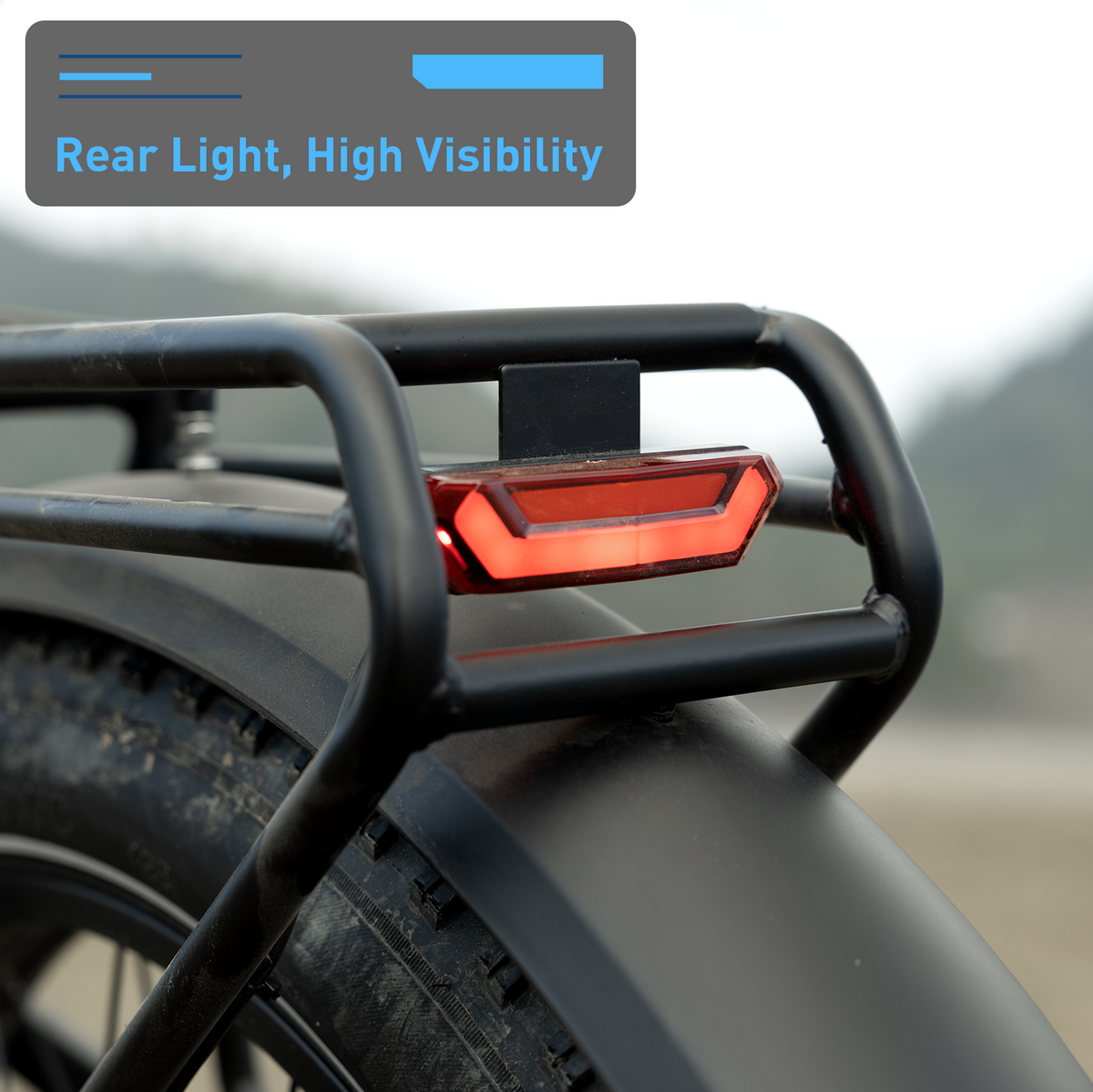

Render of the rear cargo rack and taillight on the Hiboy EX11 electric bike

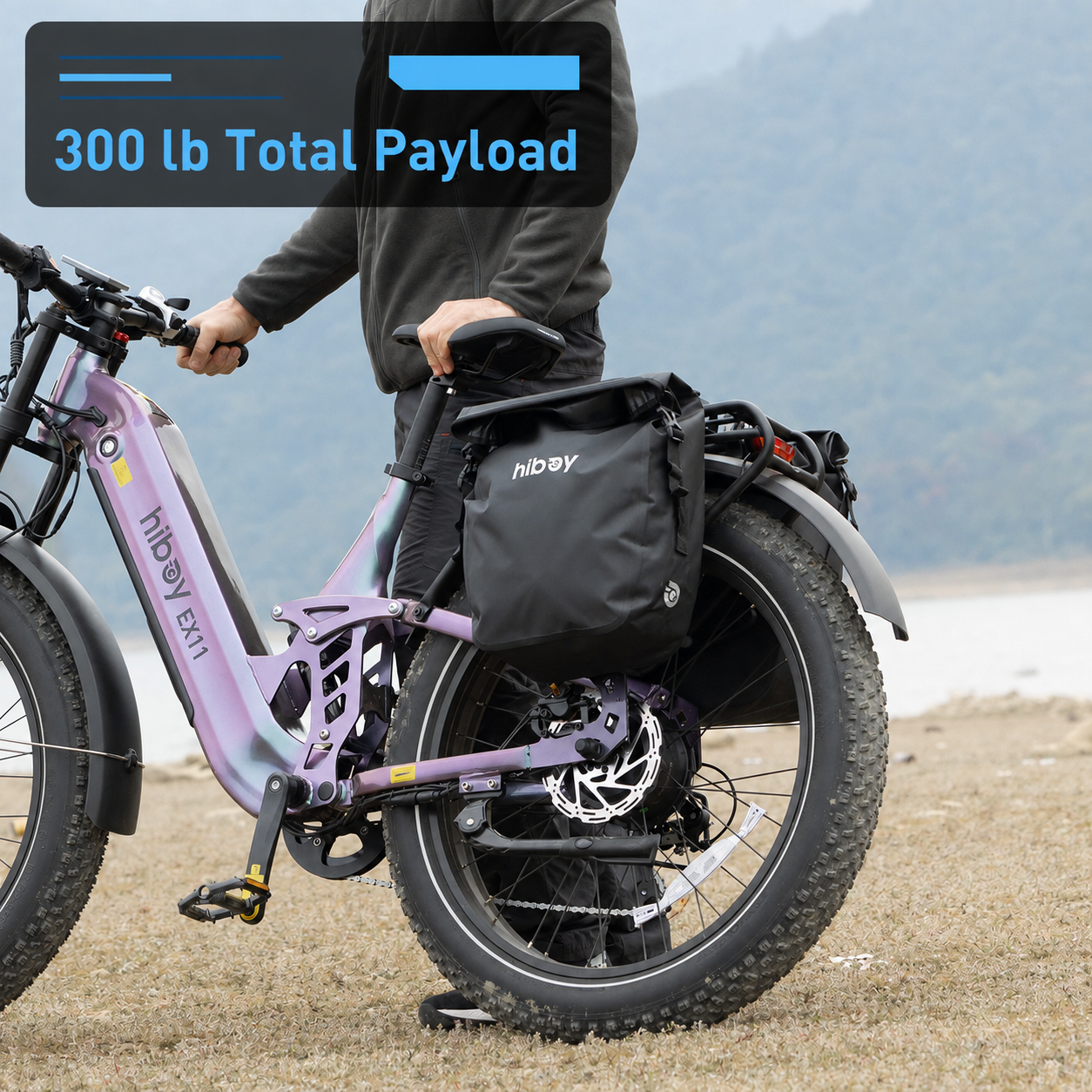

Carry more gear

Camping kit, tackle and daily essentials: a 300 lb total payload and a 55 lb rear rack carry what you actually bring outdoors.

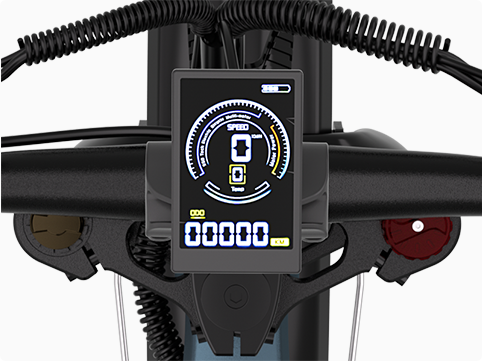

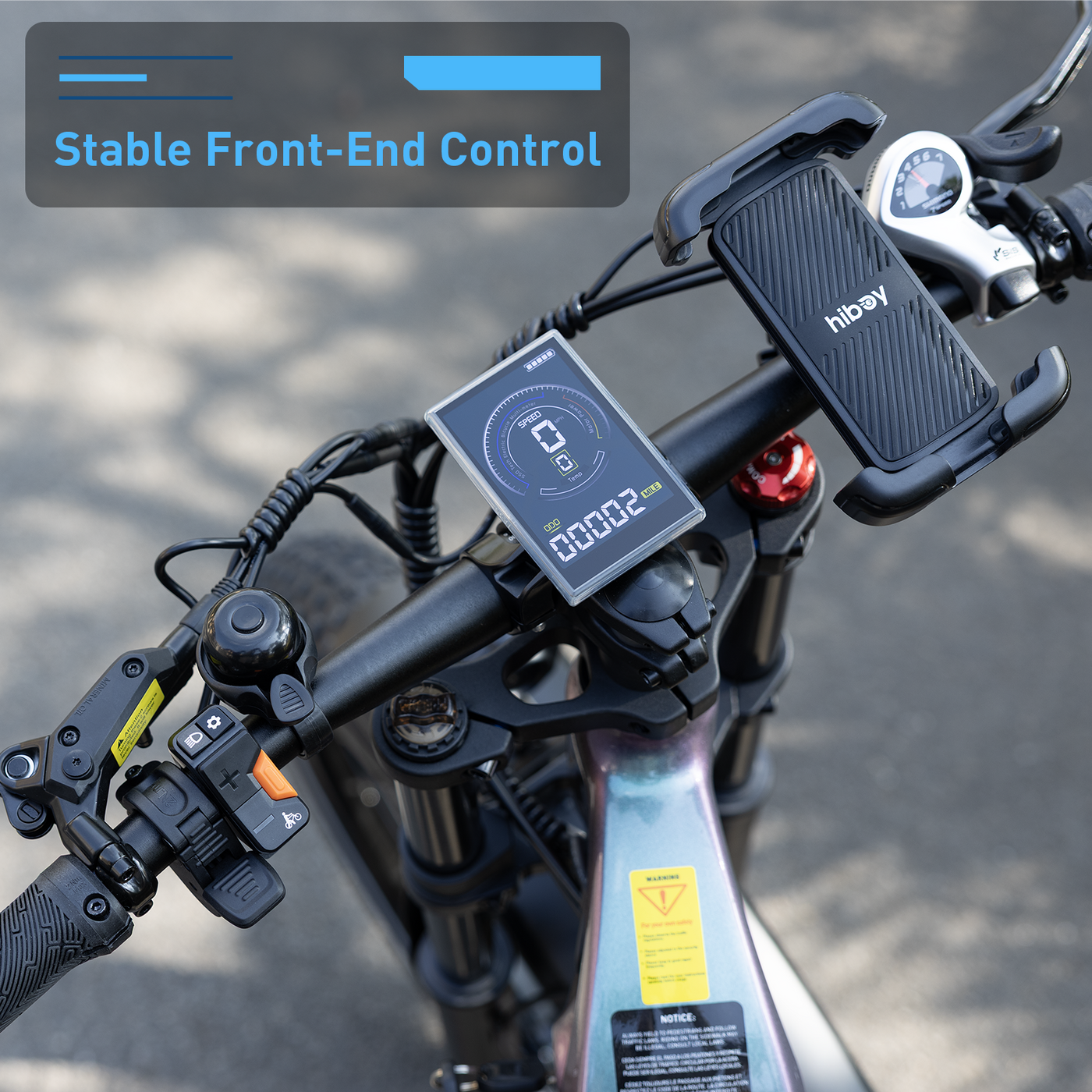

3.5-inch color display on the handlebar of the Hiboy EX11 electric bike

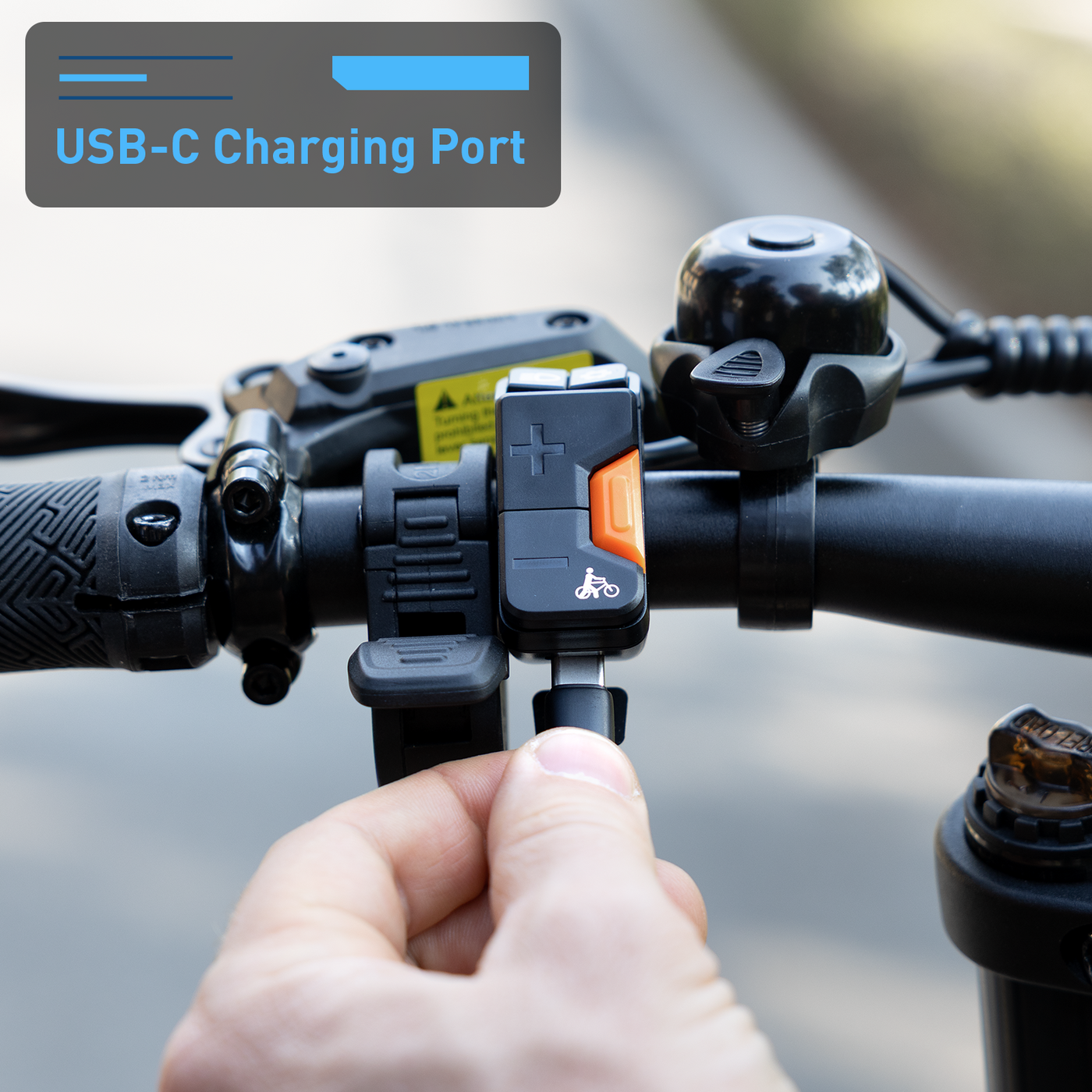

Clear display, easy charging

A 3.5-inch color display keeps speed, assist and range easy to read, with USB-C charging and IP67 sealing for long days out.

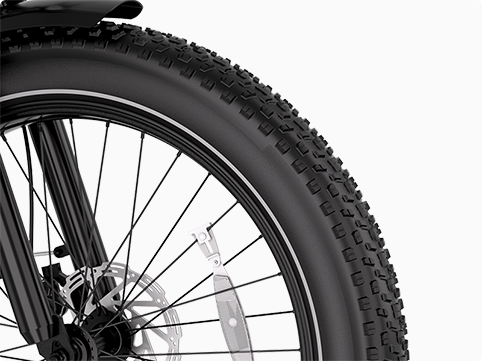

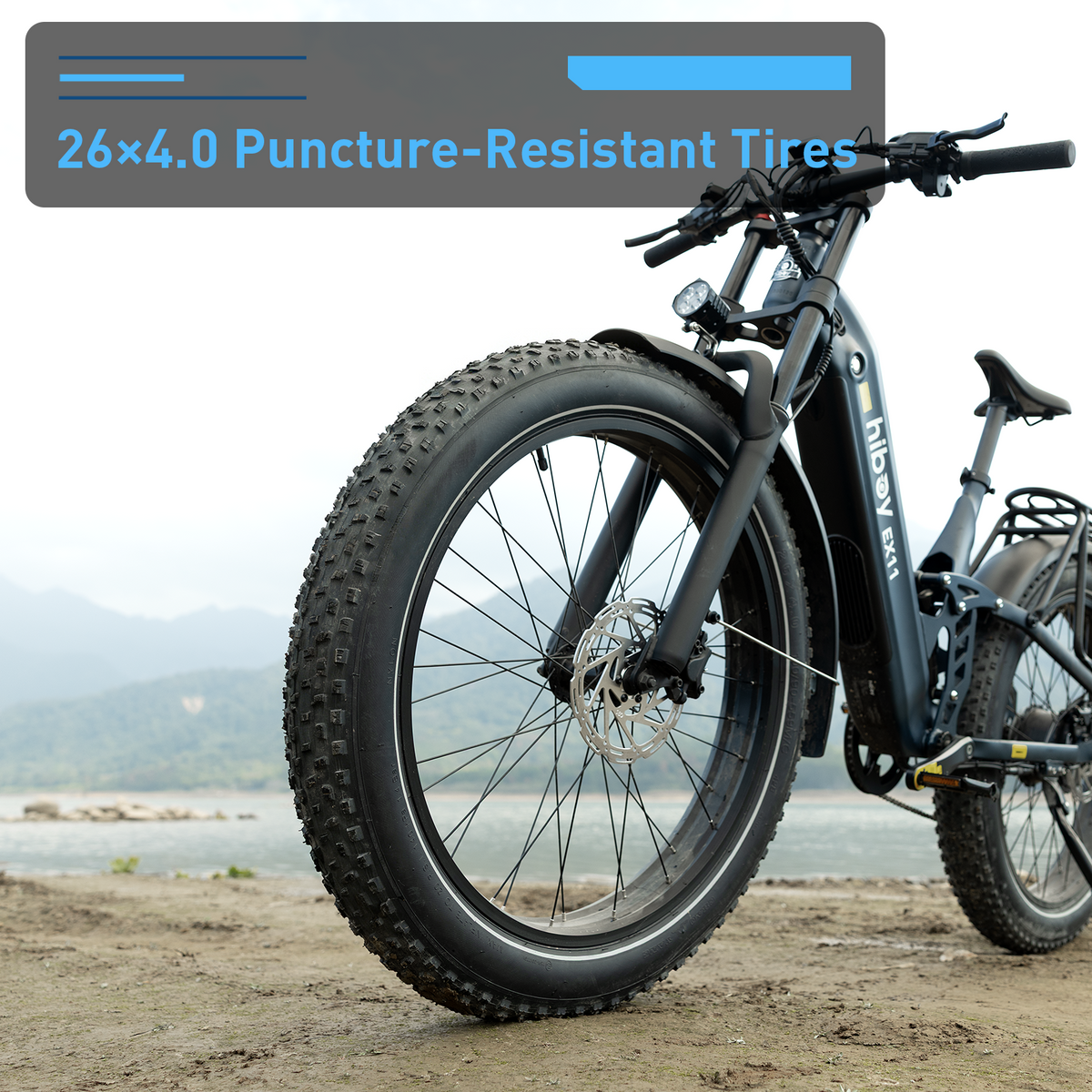

Render of the 26 by 4 inch puncture-resistant fat tire with reflective sidewall on the Hiboy EX11 electric bike

Grip plus flat protection

26 x 4 inch puncture-resistant fat tires add traction on mixed terrain and cut puncture risk, with reflective sidewalls for the ride back to camp after dark.

Side by side

EX11 vs a typical fat tire e-bike

Typical fat tire e-bike

Fork-only comfort
Heavy, uncertain feel on rough roads
Jerky or weak assist on climbs
Inconsistent braking feel
Range anxiety and inflexible charging

Hiboy EX11

Full suspension comfort
Stable, planted feel on rough roads
90 Nm plus a torque sensor: smooth, predictable assist
Dual-piston hydraulic brakes with 180 mm rotors
Up to 100 miles and a removable battery

Specifications

Hiboy EX11, in full

Riding modes: Pedal-only, pedal assist, pure electric (throttle)
E-bike class: Class 2 default; Class 3 where permitted
Recommended rider height: 5'3" to 6'3"
Motor: 750W rated, 880W peak
Motor torque: 90 Nm
Battery: Removable 48V 18Ah (864 Wh)
Sensor: Torque sensor
Display: 3.5-inch color display, USB-C
Charging time: 9 to 10 hours
IP rating: Battery and motor IP65; controller IPX7
Top speed: 20 mph default; switchable to 28 mph (Class 3, pedal assist only, where permitted)
Pedal assist range (165 lb rider): Up to 100 miles (tested)
Throttle range (165 lb rider): Up to 53 miles
Max climbing capability: 20%
Front suspension: 80 mm lockout dual-crown fork
Rear suspension: 4-link rear suspension

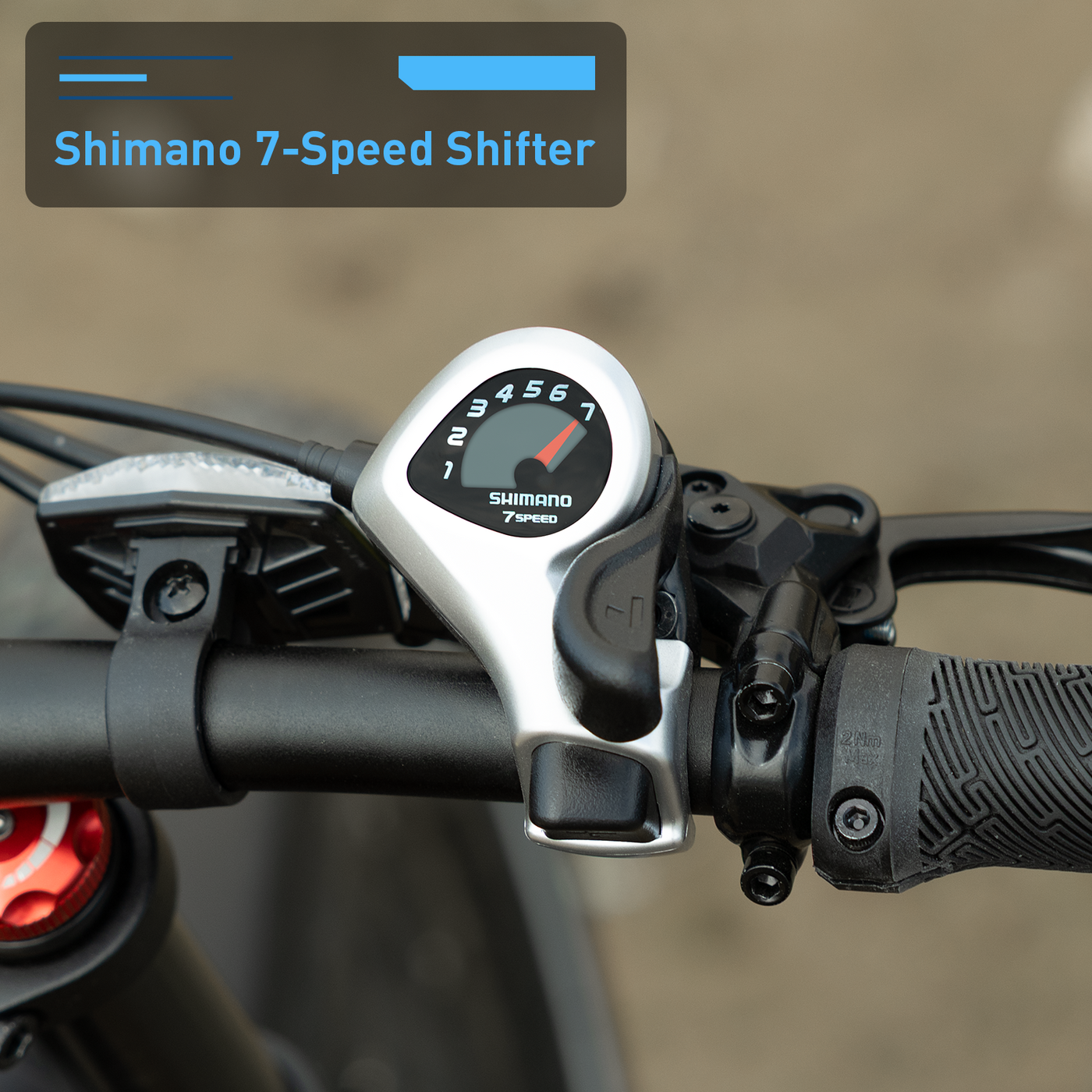

Drivetrain: Shimano 1x7
Brakes: Dual-piston hydraulic disc, 180 mm rotors
Tires: 26 x 4.0 inch puncture-resistant fat tires, reflective sidewalls
Weight: 99.2 lbs
Maximum payload: 300 lbs
Rear rack capacity: 55 lbs
Dimensions: 76.9 x 27.2 x 43.3 in
Colors: Chameleon, Navy Blue

Manufacturer specifications. Range and speed figures are the manufacturer's ratings and vary with rider weight, terrain, temperature and riding style.

Buy it from a shop

Ride the EX11 at Wilson's

The EX11 is the flagship of the Hiboy e-bike range and the one to ride if comfort matters most. Pedal it next to the P6 and the EX9 at any of our shops, feel the rear suspension over a curb, and we set the e-bike class for your state, dial in the fork and check the hydraulic brakes before you ride out.

Find a Wilson’s shop near you

FinancingPay over time on approved credit. Apply in the shop or at checkout.

1-year warrantyCovered for a year on the brands we carry, handled in our shops.

Service in the shopOur technicians handle hydraulic brakes, suspension, tires, batteries, gears and firmware for every electric bike we sell.

Set up and readyAssembled, checked, updated and configured before it leaves the shop.

FAQ

Hiboy EX11 questions

How fast does the Hiboy EX11 go?

20 mph in throttle mode as a Class 2 e-bike. Where local rules allow, Class 3 pedal assist can be unlocked for up to 28 mph. We set it up for your state at handover.

How far does it go on a charge?

Up to 100 miles on pedal assist and up to 53 miles on throttle alone with a 165 lb rider. Weight, terrain, weather, tire pressure, style and assist level all change it.

Is it good off-road?

Yes. 26 x 4 inch puncture-resistant fat tires, 4-link full rear suspension, an 80 mm lockout dual-crown fork, 90 Nm of torque and 20% climbing make it comfortable on gravel, forest trails, dirt paths and uneven ground.

How powerful is the motor?

A 750W rated motor with 880W peak and 90 Nm of torque. With the torque sensor it gives smooth acceleration, responsive assistance and confident climbing without the abrupt surges of cadence-only systems.

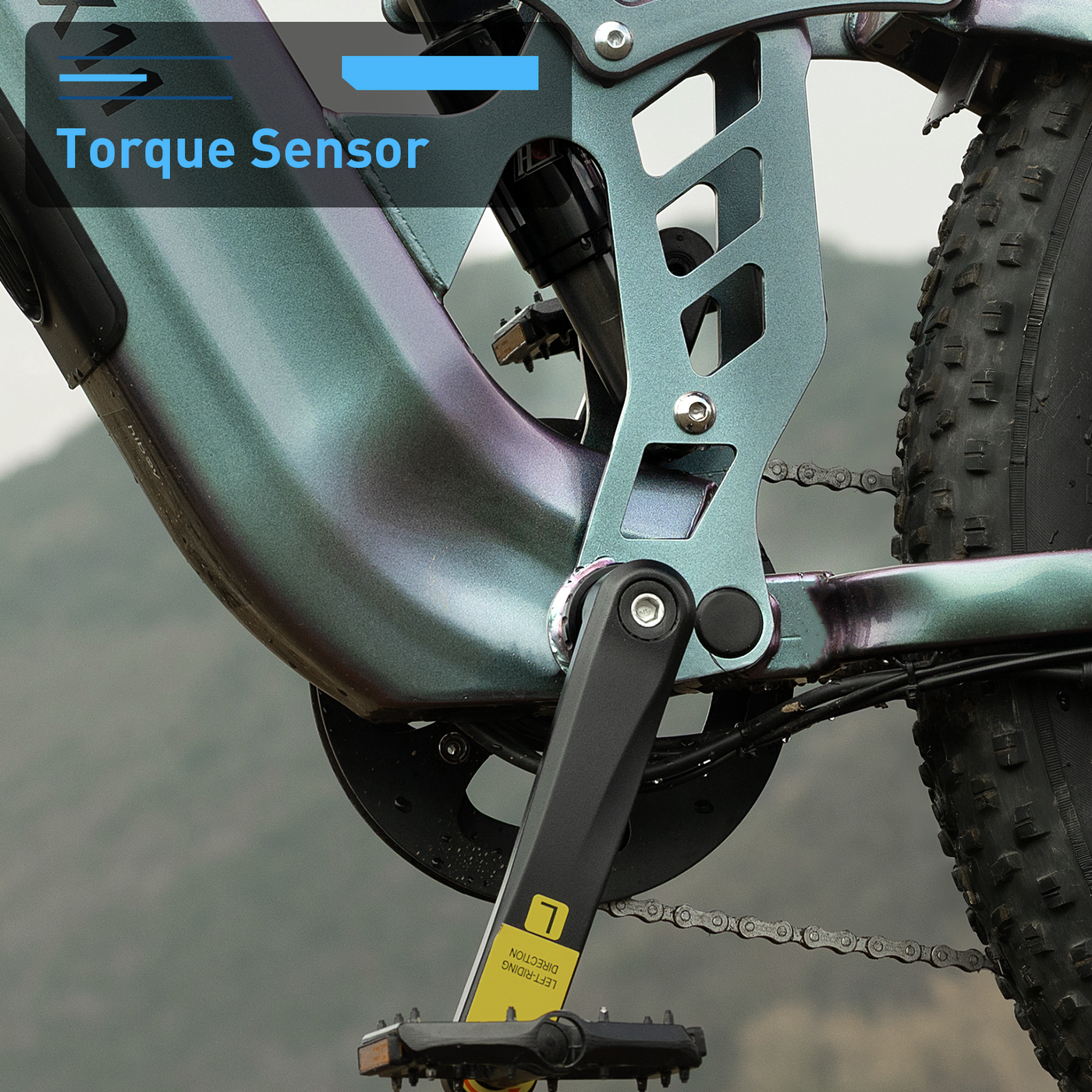

What does the torque sensor do?

It measures how hard you pedal and matches the motor to it, instead of switching on fixed assistance whenever the pedals turn. The result is a natural feel, smoother acceleration, better climbing, better efficiency and more control on technical terrain.

Is it comfortable on long rides?

It is built for them: 4-link rear suspension, an 80 mm fork, big fat tires and an upright position cut vibration and fatigue on pavement and trail.

Can it climb steep hills?

Yes, up to 20% grades with 90 Nm of torque, the 880W peak motor and the Shimano 7-speed drivetrain.

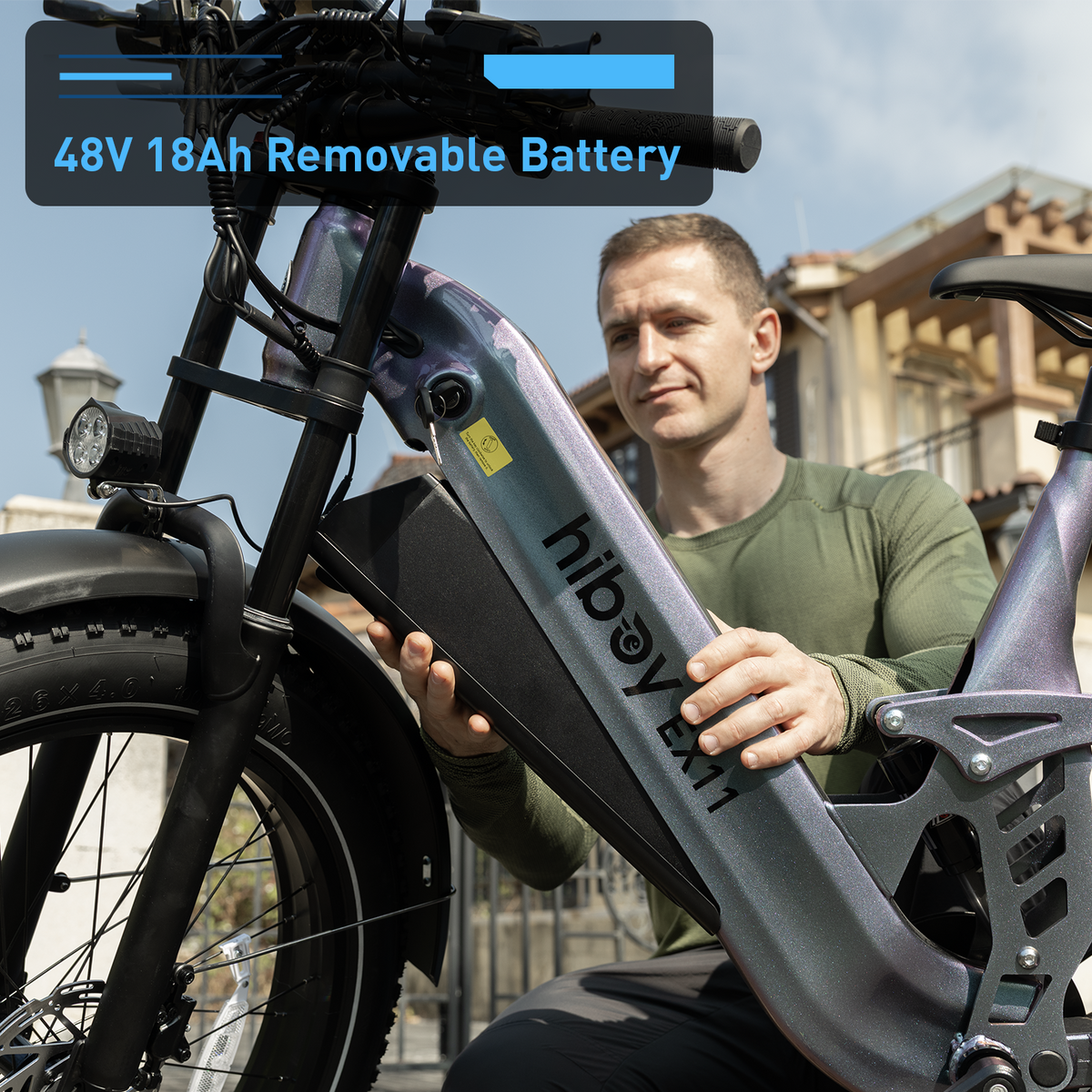

Is the battery removable, and how long does it charge?

Yes, the 48V 18Ah (864 Wh) battery lifts out to charge on or off the frame. A full charge takes about 9 to 10 hours.

Is it waterproof?

The battery and motor are rated IP65 and the controller IPX7, so rain and wet roads are fine. Do not submerge it or ride through flooding, and never charge a wet or swollen battery. Bring it straight in instead.

What rider height and weight does it fit?

Riders from 5'3" to 6'3", with a 300 lb total payload and a 55 lb rear rack.

Does it have hydraulic brakes?

Yes, dual-piston hydraulic disc brakes with 180 mm rotors for strong, consistent stops on streets, descents and trails.

What riding modes does it have?

Pedal-only, pedal assist and pure electric throttle, so you choose exercise, efficiency or effortless cruising.

How is it different from other fat tire e-bikes?

Full suspension instead of a fork alone, a torque sensor for natural assist, up to 100 miles of range, dual-piston hydraulic brakes, Class 2 and 3 capability, a 300 lb payload and IP65 sealing, in one e-bike.

How does it compare to the P6?

The P6 is a hardtail with a cadence sensor and a 62-mile range. The EX11 adds rear suspension, a torque sensor, a bigger 864 Wh battery for up to 100 miles, hydraulic brakes and a 300 lb payload. Ride both in the shop.

Can I test ride it first, and is there a warranty?

Yes to both. Come to any of our shops and ride it next to the P6 and EX9. It is covered for one year on the brands we carry, handled in our shops by our own technicians.

Is financing available, and where do I get it serviced?

Yes, apply in the shop or at checkout and pay over time on approved credit. Service is at any of our shops, where our technicians handle hydraulic brakes, suspension, tires, batteries and gears for every electric bike we sell.
